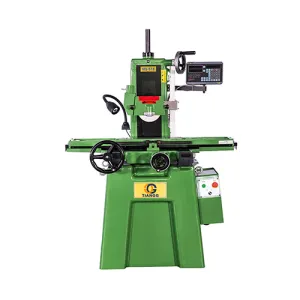

Manual precision surface grinder features:
●The workbench uses imported steel wire rope to drive the tabletop to move back and forth, with low noise and stable operation. The accuracy reaches 3u.
●The front and rear slideways of the Precision manual surface grinder adopt double V-shape, which can grind grooves and flange sides.
●The precision spindle uses a direct-connected V-3 low-vibration motor.
●The grinding head is manually advanced vertically, and the operation is convenient and controllable.
●The main castings are annealed and quarternized. The whole machine unit is rationally designed, extremely rigid and non-deformable, making it most suitable for super-hard molds and workpiece forming and grinding.
●The precision surface grinder has a beautiful appearance and a position for installing a digital display device is reserved on the machine tool.
When operating a manual surface grinder, we must pay attention to ensure that the oil circuit of the manual surface grinder is normal and reliable, so that it can run for a long time. For the operator, there are three major factors to master when operating a manual surface grinder:
1. The precise configuration of the grinding wheel of the precision manual surface grinder. Different grinding wheels are used for different workpiece materials. The grinding wheel is dressed with a sharp diamond pen. The speed of the carriage should be adjusted when dressing the grinding wheel. Only by achieving the sharpness of the dressing wheel can the workpiece be ground more smoothly.
2. Grinding machine hygiene. A manual surface grinder can be used for a long time if it is kept clean. This requirement is very important. It seems ordinary, but it requires perseverance. Just like people wearing neat clothes, a clean table and unobstructed oil circuits make people feel comfortable when operating the grinder. Cleanliness can keep the accuracy of the machine unchanged, and the accuracy can be maintained, so that the products can be high-precision!
3. Hand feel control. The hand feel depends on years of experience. Different masters operate the same manual surface grinder, and the workpieces coming into the grinder are different. Especially when grooving, fine grinding, and polishing products, you must be careful and take your time to produce fine work.
Technical Specifications:
| parameter | MS-618 |
| Workbench size | 150×457mm (6×18") |
| Maximum grinding length | 475mm (18-3/4") |
| Maximum grinding width | 160mm (6-1/3") |
| Distance from spindle to work table | 350-400mm (13.8-15.7") |
| Standard disk sizes | 150×400mm (6×16") |
| Left and right feed: manual travel | 485mm (19") |
| Front and rear feed: manual travel | 180mm (7") |
| Handwheel feed per scale | 0.02mm (0.001") |
| Feed per handwheel revolution | 5mm (0.2") |
| Lifting feed | |
| Handwheel feed per scale | 0.005mm:（0.0002”） |
| Feed per handwheel revolution | 1mm (0.05") |
| grinding wheel | |
| Grinding wheel size (diameter × width × aperture) | (7×2/3×1-1/4") |
| Spindle speed (60HZ/50HZ) | 3600/3000rpm |
| Motor: Spindle motor | 1 or 1.5HP |
| Weight: Net weight/Gross weight | 850kgs (1870lbs) |
| Packing size: length × width × height | 1400×1150×1980mm (55×45×78") |
Precision manual surface grinder: Maintenance, Warranty, and After-Sales Guide
The Precision manual surface grinder is an essential tool in workshops, toolmaking, mold manufacturing, and precision engineering. Designed for high-accuracy flat surface finishing, it allows operators to achieve smooth and precise surfaces on metal and alloy workpieces. This guide provides detailed instructions on maintenance, care, warranty, and after-sales service to ensure optimal performance and long-term reliability.
Introduction to Precision Manual Surface Grinder
Key Features and Applications
Maintenance and Care
After-Sales Service and Support
Warranty Terms and Conditions
Recommended Maintenance Schedule
Frequently Asked Questions (FAQs)
Conclusion
A Precision Manual Surface Grinder is designed to provide accurate flat surface grinding with manual control, allowing operators to fine-tune movements for exceptional surface quality. Unlike automatic grinders, the manual version offers greater flexibility and tactile feedback, which is critical in small-scale workshops or high-precision toolmaking environments.
High precision and control over surface finish
Ability to handle diverse metal and alloy workpieces
Durable construction ensures long-term stability
Simple operation and easy troubleshooting
Applications include: mold and die finishing, tool sharpening, precision parts machining, and laboratory testing of materials.
| Feature | Description |
|---|---|
| Grinding Table Size | 300 mm × 150 mm to 600 mm × 300 mm, depending on model |
| Spindle Speed | Adjustable 2800–3600 RPM for optimal surface finish |
| Grinding Wheel Diameter | 150–250 mm, suitable for various metals |
| Handwheel Operation | Smooth, precise control over X and Y axes |
| Base Material | Cast iron for stability and vibration reduction |
| Coolant System | Optional integrated or external coolant for heat management |
| Accuracy | ±0.01 mm flatness and parallelism |
Toolmaking and mold manufacturing
Metal surface finishing and leveling
Prototype part preparation
Laboratory and quality control testing
Precision mechanical components
Regular maintenance ensures accuracy, prolongs machine lifespan, and reduces downtime.
Clean the work table, grinding wheel, and surrounding area to remove dust and debris.
Inspect the grinding wheel for wear, cracks, or damage.
Check handwheel smoothness and ensure there are no obstructions.
Lubricate slideways lightly if required by the manufacturer.
Inspect spindle bearings and tighten any loose fittings.
Check table movement along the X and Y axes for smooth operation.
Verify coolant levels if a coolant system is installed.
Clean magnetic chuck or surface clamping system.
Inspect and clean slideways thoroughly, applying fresh lubrication.
Test overall machine accuracy with gauge blocks or precision measurement tools.
Replace worn grinding wheels or dressing the wheel surface if required.
Check all electrical connections if the machine has powered components.
Pro Tip: Always use manufacturer-recommended lubricants and cleaning agents to maintain precision and warranty compliance.
High-quality after-sales service is essential for maintaining performance and reliability. Reputable suppliers provide the following support:
Technical Assistance: Guidance on machine setup, calibration, and troubleshooting.
Spare Parts Supply: Access to original parts such as grinding wheels, bearings, and handwheels.
Remote Support: Online or phone consultation for operational queries.
Training: Operator training for safe and precise machine use.
Pro Tip: Keep a record of service calls and repairs to track machine health and maintain warranty coverage.
Most precision manual surface grinders come with a structured warranty to ensure customer confidence.
| Coverage | Duration | Notes |
|---|---|---|
| Mechanical Components | 12 months | Includes handwheels, table guides, and spindle assembly |
| Grinding Wheel and Accessories | 6 months | Includes dressing tools and standard wheels |
| Electrical Components | 12 months | Includes power supply, motors (if applicable), and wiring |
| Technical Support | Lifetime | Remote assistance, troubleshooting, and consultation |
Warranty is valid for machines operated under standard conditions and with regular maintenance.
Damage caused by misuse, overloading, or unauthorized modifications is excluded.
Replacement parts must be OEM-approved to maintain coverage.
Maintenance logs may be requested for warranty claims.
Pro Tip: Register your machine upon purchase and schedule regular inspections to ensure compliance with warranty terms.
| Frequency | Maintenance Task |
|---|---|
| Daily | Clean work table, inspect grinding wheel, check handwheel operation |
| Weekly | Inspect spindle bearings, verify table movement, check coolant levels |
| Monthly | Clean slideways, test machine accuracy, dress or replace grinding wheel |
| Quarterly | Full inspection of base, spindle, and clamping system; recalibration if needed |
| Annually | Professional service check by manufacturer or authorized service provider |
Q1: Can the manual surface grinder handle hard metals?
A: Yes, it is capable of grinding steel, stainless steel, and other alloys, provided the correct wheel type is used.
Q2: How do I ensure flatness and parallelism?
A: Regular calibration, careful setup, and consistent use of precision measuring tools are essential.
Q3: How often should the grinding wheel be replaced?
A: Depending on usage, every 3–6 months, or sooner if wear or damage is detected.
Q4: Is coolant required for all operations?
A: While not always mandatory, coolant helps reduce heat, prolong wheel life, and improve surface finish.
Q5: How do I maintain slideways for smooth movement?
A: Clean slideways regularly, remove debris, and apply recommended lubricants as per manufacturer guidelines.
The Precision Manual Surface Grinder is an indispensable tool for achieving high-quality flat surfaces with tight tolerances. By following a regular maintenance schedule, adhering to operational guidelines, and leveraging after-sales support and warranty coverage, operators can maximize machine performance and lifespan. Proper care ensures precision, efficiency, and reliability, making this grinder an ideal solution for workshops, toolmaking, and precision engineering applications.
