Precision forming surface grinder: Comprehensive Guide on Maintenance, Accessories, and Technical Support

The Precision Forming Surface Grinder is an essential machine for achieving high-accuracy shaping and finishing of complex metal surfaces. Widely used in toolmaking, mold production, and precision engineering, it delivers consistent surface quality, exact dimensional control, and long-term stability. This guide provides detailed information on after-sales support, accessories, technical services, and maintenance best practices, helping operators maximize performance and ensure reliability.

Table of Contents

1. Introduction to Precision Forming Surface Grinder

2. Key Features and Applications

3. Accessories and Component Overview

4. Maintenance and Care

5. Technical Services and Support

6. After-Sales Support and Warranty

7. Recommended Maintenance Schedule

8. Frequently Asked Questions (FAQs)

9. Conclusion

1. Introduction to Precision Forming Surface Grinder

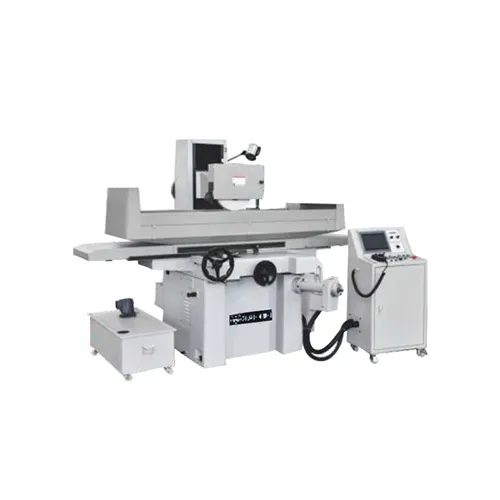

A Precision Forming Surface Grinder is designed for high-accuracy flat and contoured surface grinding. Unlike conventional surface grinders, forming grinders allow precise replication of complex forms and contours. Manual or CNC operation provides flexibility for both simple and intricate shapes.

Advantages

• Superior dimensional accuracy and repeatability

• Ability to handle complex molds and tools

• Stable, vibration-free operation

• Smooth surface finishes without burrs

Applications include: precision mold manufacturing, tool fabrication, mechanical component finishing, and laboratory testing.

2. Key Features and Applications

Key Features

Applications

1. Mold and die manufacturing

2. Toolmaking and cutting tool finishing

3. Prototype part shaping and testing

4. Precision metal surface finishing

5. Laboratory and quality control components

3. Accessories and Component Overview

Proper use of accessories is essential for achieving high precision and maintaining performance.

Standard Accessories

Optional Accessories

• CNC interface for automated contour grinding

• Digital readouts for precise positioning

• Magnetic or vacuum chucks for irregular workpieces

• Extended tables for larger molds or components

Pro Tip: Use only manufacturer-recommended accessories to maintain accuracy, prevent damage, and ensure warranty compliance.

4. Maintenance and Care

Regular maintenance is critical for optimal performance, precision, and long-term reliability.

Daily Maintenance

• Clean the work table, grinding wheel, and surrounding areas to remove metal dust.

• Inspect the grinding wheel for cracks, wear, or damage.

• Check handwheel smoothness and verify table movement.

• Ensure coolant levels are sufficient if the system is installed.

Weekly Maintenance

• Lubricate slideways and guide rails per manufacturer specifications.

• Inspect spindle bearings for smooth operation.

• Verify the flatness of the grinding table using a precision straightedge.

• Clean magnetic or vacuum chucks to maintain workpiece stability.

Monthly Maintenance

• Check all electrical connections (if equipped) for loose wires or corrosion.

• Dress grinding wheels to restore shape and improve cutting performance.

• Test machine accuracy with gauge blocks or calibration tools.

• Inspect coolant system filters and replace as necessary.

Pro Tip: Keep a maintenance log to track performed tasks and identify recurring issues early.

5. Technical Services and Support

High-quality technical support ensures machine uptime and consistent performance.

Technical Service Offerings

• Machine Setup Assistance: Expert guidance for optimal installation and calibration.

• Troubleshooting: Remote or on-site assistance for operational issues.

• Component Replacement Guidance: Help in identifying correct parts and installation methods.

• Training: Operator training on machine use, safety protocols, and precision techniques.

Pro Tip: Utilize technical support proactively for calibration or troubleshooting to prevent long-term damage or downtime.

6. After-Sales Support and Warranty

Reliable after-sales support guarantees peace of mind for industrial buyers.

Warranty Coverage

Warranty Conditions

• Warranty is valid under normal operating conditions with recommended maintenance.

• Damage due to misuse, overloading, or unauthorized modifications is excluded.

• OEM-approved replacement parts are required for warranty compliance.

• Service records may be requested for warranty claims.

Pro Tip: Register the machine upon purchase and schedule regular inspections to maintain warranty validity.

7. Recommended Maintenance Schedule

8. Frequently Asked Questions (FAQs)

Q1: Can this grinder handle complex mold surfaces?
A: Yes, it is designed for precision forming of intricate surfaces with high dimensional accuracy.

Q2: How often should accessories be replaced?
A: Grinding wheels and dressing tools should be replaced based on wear or surface finish quality, usually every 3–6 months.

Q3: Is coolant required?
A: Coolant is recommended to reduce heat, prolong wheel life, and achieve smooth finishes.

Q4: Can this machine operate continuously?
A: Yes, but periodic breaks are advised for spindle cooling and maintenance.

Q5: How do I maintain consistent surface accuracy?
A: Regular cleaning, lubrication, calibration, and proper accessory use are essential for precision and repeatability.

9. Conclusion

The Precision Forming Surface Grinder is a vital tool for achieving accurate and consistent surface finishes on complex metal parts. By following recommended maintenance schedules, leveraging technical support, and using OEM accessories, operators can maximize machine performance, longevity, and precision. Combined with comprehensive after-sales support and warranty coverage, this grinder ensures reliable and efficient operation, making it an indispensable asset for toolmaking, mold production, and precision engineering industries.
