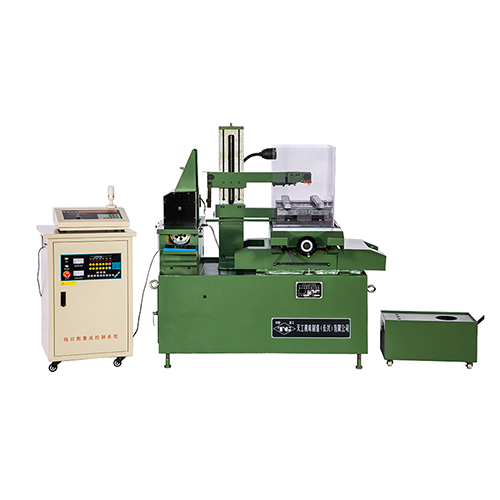

Features of wire EDM:
Wire EDM machines are mainly used for reviewing parts processing and are widely used in large quantities of high-precision molds and precision products, such as cemented carbide, medical equipment, automotive parts, rare earth alloys, etc. The production cost is low and the effect is fast.
Technical Specifications:
| parameter | unit | DK7732 | DK7740 |
| Work surface size | mm | 430X680 | 560X850 |
| Workbench travel | mm | 320X400 | 400X500 |
| Maximum processing thickness | mm | Adjustable wire rack up to 350 | Adjustable wire rack up to 450 |
| Maximum load weight | kg | 300 | 450 |
| Maximum molybdenum wire diameter | mm | ≤0.25 | ≤0.25 |
| Processing accuracy | mm | ≤0.015 | ≤0.02 |
| Processing roughness | mm | ≤2.5 | ≤2.5 |
| Wire feeding speed | m/s | 11.6 | 11.6 |
| Maximum efficiency | mm²/min | 100 | 100 |
| Host dimensions | mm | 1200X1600X1600 | 1300X1700X1680 |
| Packing box size | mm | 1250X1650X1660 | 1400X1800X1750 |
| Gross weight | kg | 1200 | 1600 |
| net weight | kg | 1000 | 1500 |
| Total power of electrical appliances | kw | ≤1.5 | ≤1.5 |
| taper | ° | ±3~±6 | ±3~±6 |
| Taper thickness | mm | Maximum thickness 100 | Maximum thickness 100 |
High-Precision Wire-Cut Electric Discharge Machine: Complete Guide to Maintenance, Repair, Cleaning, and Transport
The High-Precision Wire-Cut Electric Discharge Machine (EDM) is an essential tool for industries requiring exact metal cutting, including aerospace, automotive, and mold manufacturing. Combining high precision with durability and efficiency, this machine enables manufacturers to produce complex components with tight tolerances. This guide covers fault repair, maintenance methods, cleaning procedures, and transport precautions, helping operators maximize machine performance while ensuring safety and longevity.
Introduction to High-Precision Wire-Cut EDM Machine
Key Features and Applications
Maintenance and Care
Troubleshooting and Repair
Cleaning and Hygiene Practices
Transportation and Handling Guidelines
Frequently Asked Questions (FAQs)
Conclusion
A High-Precision Wire-Cut EDM Machine uses electrical discharges to cut conductive metals with high accuracy. Unlike traditional cutting tools, EDM eliminates mechanical stress, making it ideal for delicate or complex parts. Key advantages include:
Exceptional cutting precision (±0.01 mm or better)
Capability to handle hard metals such as titanium, stainless steel, and alloys
Smooth surface finishes without burrs
Compatibility with automated CNC programming for complex shapes
EDM machines are widely used in industries producing molds, dies, aerospace components, and intricate mechanical parts, where traditional machining may be insufficient.
| Feature | Description |
|---|---|
| Cutting Precision | ±0.01 mm accuracy for high-quality components |
| Wire Diameter | 0.1 mm – 0.3 mm for versatile cutting |
| CNC Control | Advanced programming for complex contours |
| Power Efficiency | Energy-saving servo motors and power systems |
| Dielectric Management | Closed-loop system with filtration and recycling |
| Safety Features | Emergency stop, overload protection, and enclosed work area |
Aerospace and aviation parts
Automotive components and gear manufacturing
Precision molds and dies
Medical instruments and implants
Electronics and micro-mechanical parts
Proper maintenance is critical for high-precision EDM machines to ensure consistent performance and prolong lifespan.
Inspect wire tension and replace worn wire.
Check dielectric fluid levels and clarity.
Clean work area and control panel to remove dust and debris.
Verify CNC program inputs before operation.
Lubricate moving parts as per manufacturer guidelines.
Inspect wire guides and pulleys for wear.
Test motors and servo systems for smooth operation.
Clean and inspect dielectric fluid filters.
Perform calibration checks for cutting accuracy.
Inspect electrical connections for corrosion or looseness.
Conduct a trial cut to verify performance.
Review machine logs and error history to preempt issues.
Pro Tip: Always use manufacturer-recommended lubricants, dielectric fluids, and replacement components to maintain warranty coverage and ensure consistent performance.
Even high-precision EDM machines can experience operational issues. Understanding common faults and solutions minimizes downtime.
| Fault | Possible Cause | Solution |
|---|---|---|
| Machine not powering on | Power supply or fuse issue | Check power, reset circuit breakers, replace fuses |
| Wire breakage | Incorrect wire tension or abrasive material | Adjust tension, select suitable wire |
| Inconsistent cut accuracy | Worn guides or misalignment | Replace guides, recalibrate machine |
| Dielectric fluid issues | Contaminated or low fluid | Filter or replace dielectric fluid |
| CNC error codes | Software glitch or sensor misalignment | Reboot machine, update firmware, realign sensors |
Identify the problem using diagnostic tools or error codes.
Power down the machine and disconnect from electricity.
Replace or adjust faulty components such as wire guides, motors, or sensors.
Conduct a trial cut to confirm resolution.
Document the repair process for future reference and compliance.
Pro Tip: Maintain a stock of essential spare parts like wires, guides, and filters to reduce downtime during repairs.
Maintaining a clean machine environment improves performance and prolongs component life.
Exterior Cleaning: Wipe machine surfaces, control panels, and exterior housing using a soft cloth and mild cleaner.
Wire Guides and Pulleys: Remove dust and metal particles regularly to avoid wire misalignment.
Dielectric System: Clean tanks, filters, and recycling system weekly to maintain fluid quality.
Interior Components: Avoid using excessive water or cleaning agents; use manufacturer-approved solvents for internal parts.
Pro Tip: Regular cleaning reduces the risk of CNC errors caused by debris and ensures consistent cutting accuracy.
High-precision wire-cut EDM machines require careful handling during transportation to prevent damage to sensitive components.
Secure the Machine: Use rigid packaging, foam padding, and straps to stabilize the machine during shipping.
Drain Fluids: Remove dielectric fluids and lubricants to prevent leakage.
Protect CNC Components: Ensure that control panels, wires, and motors are secured to prevent shocks.
Temperature and Humidity: Avoid extreme conditions that could damage electronics or mechanical parts.
Professional Handling: Use trained personnel for loading, unloading, and installation.
Level the machine on a vibration-free surface.
Refill dielectric fluid and lubricants after transport.
Run calibration and test cuts before starting production.
Q1: What materials can the EDM machine cut?
A: Metals such as copper, aluminum, steel, titanium, and specialized alloys.
Q2: How often should wire guides be replaced?
A: Depending on usage, usually every 2–3 months or when wear affects cutting accuracy.
Q3: Can the machine operate continuously?
A: Yes, but regular breaks are recommended for cooling and maintenance.
Q4: How do I maintain dielectric fluid quality?
A: Filter or replace fluid regularly and monitor for contamination or color change.
Q5: Are there energy-saving features?
A: High-precision EDM machines use energy-efficient motors, low-power standby modes, and optimized dielectric pumping systems.
The High-Precision Wire-Cut Electric Discharge Machine is a vital tool for industries requiring exact metal cutting. By following proper maintenance, cleaning, and troubleshooting procedures, and adhering to transport and handling guidelines, operators can maximize machine lifespan and maintain cutting precision.
Investing in high-precision EDM equipment enhances production quality, reduces material waste, and ensures consistent performance, making it an ideal choice for aerospace, automotive, mold-making, and other precision manufacturing sectors.
