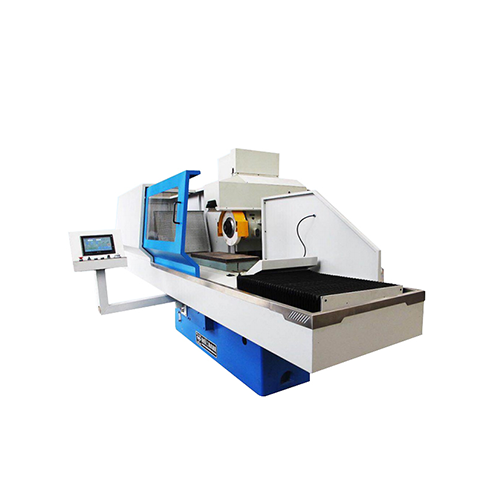

Surface Grinder Features:
● The surface grinder's worktable guide surfaces and the lower guide rails are coated with PTFE plastic sheets, ensuring easy and flexible carriage movement and a long service life.
● The surface grinder's grinding head spindle is directly driven by a built-in motor, and the spindle bearings utilize ultra-precision rolling bearings. The motor rotor is dynamically balanced
to ensure low surface roughness during grinding. The main machine utilizes high-strength castings for excellent rigidity, and the guide rails have wide spacing for high grinding efficiency.
● Each moving part (kinematic pair) of the machine tool utilizes a solenoid valve oil pump for automatic, centralized oil supply, ensuring continuous lubrication of all parts of the machine tool.
Technical parameters:
| parameter | unit | CKM7132X1000 | CKM7140X1000 | CKM7150X1000 | ||
| Workbench | Table size (width x length) | mm | 320×1000 | 400×1000 | 500×1000 | |
| Suction cup size (width x length) | 320×800 | 400×1000 | 500×1000 | |||
| Maximum grinding size (width x length x height) | mm | 300X1000X400 | 400×1000×400 | 500×1000×400 | ||
| Workbench longitudinal stroke (hydraulic) | mm | 200~1100 | 200~1100 | 200~1100 | ||
| Workbench speed (stepless) | m/min | 3-27 | 3-27 | 3-27 | ||
| Workbench T-slot number x width | 3X18 | 3X18 | 3X18 | |||
| Workbench load capacity | kg | 499 | 499 | 499 | ||
| grinding head | Distance from grinding wheel spindle center to workbench | mm | 135~575 | 135~575 | 135~575 | |
| Grinding head transverse intermittent feed per stroke | mm/times | CNC | CNC | CNC | ||
| Grinding wheel spindle speed | rpm | 1440 | 1440 | 1440 | ||
| Vertical feed handwheel dial value | mm | 0.01 | 0.01 | 0.01 | ||
| Grinding head feed per handwheel rotation | Vertical feed | mm | CNC stepless speed change | CNC stepless speed change | CNC stepless speed change | |
| Cross feed | mm | CNC stepless speed change | CNC stepless speed change | CNC stepless speed change | ||
| Grinding wheel size (outer diameter x width x inner diameter) | mm | Φ(270~350)X40XΦ127 | Φ400×50×Φ203 | Φ400×50×Φ203 | ||
| Motor power | Total motor power | kw | 15 | 15 | 15 | |
| Grinding head motor power | kw | 11 | 11 | 11 | ||
| Working accuracy | Parallelism of the machined surface to the base | mm | 300:0.005 | 300:0.005 | 300:0.005 | |
| surface roughness | um | Ra0.63 | Ra0.63 | Ra0.63 | ||
| Machine weight | net weight | kg | 00 | 00 | 00 | |
| Gross weight | kg | 4200 | 4600 | 5000 | ||
| Overall dimensions (length x width x height) | mm | 3200×1900×2500 | 4100×1900×2500 | 4100×1900×2500 | ||
CNC series surface grinder: Features, Applications, Usage Tips, and Solutions
The CNC Series Surface Grinder is a state-of-the-art machine designed to provide high-precision flat and contoured surface finishing with automated control. Widely used in mold-making, tool fabrication, and precision engineering, it combines advanced CNC technology, robust mechanical design, and user-friendly operation to achieve superior accuracy and consistent results. This guide outlines usage recommendations, core features, applications, and practical solutions for optimizing CNC surface grinding operations.
Introduction to CNC Series Surface Grinder
Main Features and Technical Advantages
Usage Recommendations and Best Practices
Applications and Product Scope
Common Challenges and Practical Solutions
Maintenance Guidelines
Frequently Asked Questions (FAQs)
Conclusion
The CNC Series Surface Grinder integrates computer numerical control with precision grinding mechanisms to deliver high repeatability and accuracy. Unlike manual grinders, CNC control minimizes operator error, improves efficiency, and allows complex surface patterns to be reproduced with high fidelity.
High-precision surface finishing with minimal deviation
Automated operation reduces human error and labor costs
Consistent quality for repetitive production tasks
Supports complex forms and contours with programmable motion
Durable design for long-term reliability
| Feature | Specification |
|---|---|
| Table Size | 400 mm × 200 mm to 600 mm × 300 mm |
| Spindle Speed | 2800–3600 RPM, adjustable |
| Grinding Wheel Diameter | 150–250 mm |
| Accuracy | ±0.01 mm for flat and contoured surfaces |
| CNC Control | Fully programmable for X, Y, and Z axes |
| Base Material | High-strength cast iron for stability and vibration damping |
| Coolant System | Integrated or external for heat management |
| Safety Features | Emergency stop, overload protection, and enclosure |
CNC Control: Enables precise movement along all axes with repeatable accuracy
Stable Base: Cast iron construction reduces vibration and enhances surface quality
Programmable Operations: Supports multiple grinding patterns and complex surface profiles
Energy Efficiency: Optimized motor and coolant systems reduce power consumption
Proper operation ensures accuracy, prolongs machine life, and reduces maintenance issues.
Inspect the grinding wheel for wear or damage.
Verify table and spindle alignment.
Check coolant levels and filtration.
Ensure all safety guards are in place.
Use manufacturer-recommended grinding wheels for specific materials.
Program machining sequences carefully to avoid overloading the spindle.
Gradually increase feed rate to achieve smooth surface finishes.
Monitor coolant flow to prevent overheating.
Clean the table, spindle, and surrounding areas.
Inspect the workpiece for surface quality.
Lubricate slideways and guide rails if required.
Record any deviations or operational issues for review.
Pro Tip: Regular calibration and alignment checks maintain precision over time.
The CNC Series Surface Grinder is suitable for multiple industries and applications.
| Industry | Typical Applications |
|---|---|
| Mold Making | Injection molds, die finishing, complex cavity surfaces |
| Tool Fabrication | Cutting tools, measuring instruments, precision gauges |
| Automotive | Engine components, transmission parts, precision panels |
| Aerospace | Turbine components, structural parts, prototype surfaces |
| Research & Development | Material testing, prototype machining, surface analysis |
Even advanced CNC Surface Grinders may face operational challenges. Below are common issues and recommended solutions:
| Challenge | Cause | Solution |
|---|---|---|
| Surface Roughness | Incorrect wheel selection or feed rate | Use proper wheel and adjust feed rate |
| Vibration Marks | Loose table or unstable foundation | Ensure base stability and secure workpiece |
| Overheating | Insufficient coolant flow | Check coolant system and ensure proper circulation |
| Inconsistent Accuracy | Misalignment or wear | Regular calibration and spindle maintenance |
| Excessive Wheel Wear | Hard materials or high-speed grinding | Use suitable wheel type and adjust speed |
Pro Tip: Implement a preventative maintenance schedule to minimize downtime and maintain high surface quality.
Proper maintenance ensures consistent performance and extends the lifespan of the grinder.
Clean grinding area and table
Inspect wheel and spindle for wear
Check coolant levels
Lubricate slideways and guide rails
Verify spindle operation and table movement
Inspect electrical connections
Dress or replace grinding wheels
Test machine accuracy with calibration tools
Replace coolant filters
Pro Tip: Maintain a detailed service log to track maintenance activities and predict component replacement needs.
Q1: Can the CNC surface grinder handle hard metals?
A: Yes, it can grind steel, stainless steel, titanium, copper, and other alloys with proper wheel selection.
Q2: How often should the machine be calibrated?
A: Recommended every 3–6 months, or more frequently under heavy usage.
Q3: Is coolant necessary for all operations?
A: While not always mandatory, coolant improves surface finish, reduces heat, and extends wheel life.
Q4: Can it be used for prototype and small-batch production?
A: Yes, CNC programming allows flexible operation for both high-volume and low-volume applications.
Q5: How do I optimize energy efficiency?
A: Use energy-saving motors, maintain coolant system efficiency, and activate standby mode when idle.
The CNC Series Surface Grinder offers unmatched precision, efficiency, and versatility for modern industrial applications. By following proper usage recommendations, leveraging CNC programmability, and performing regular maintenance, operators can achieve consistent high-quality surface finishes on complex and flat parts. Its advanced features, energy-efficient design, and broad application range make it an essential tool for mold-making, tool fabrication, automotive, aerospace, and R&D industries.
